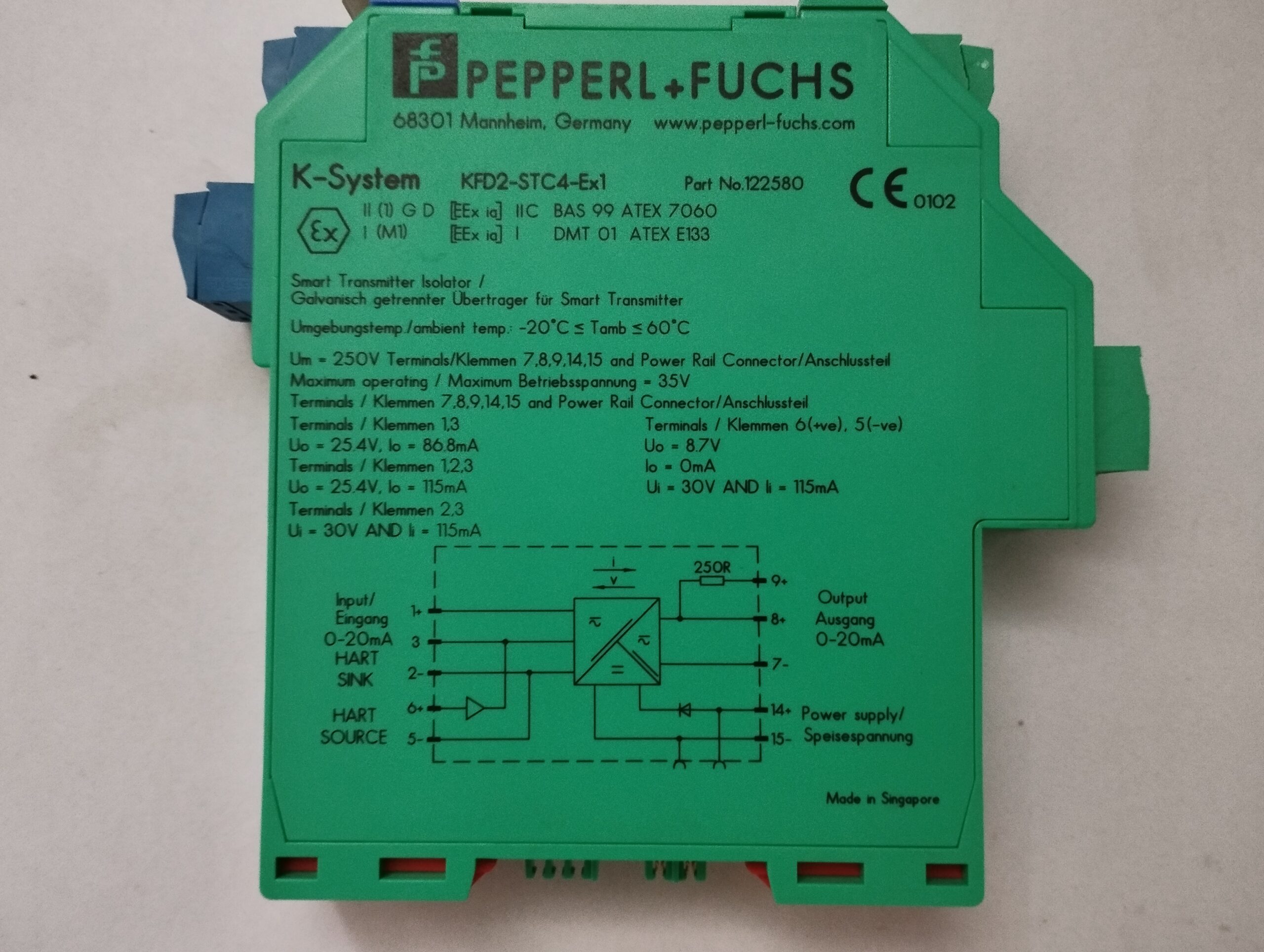

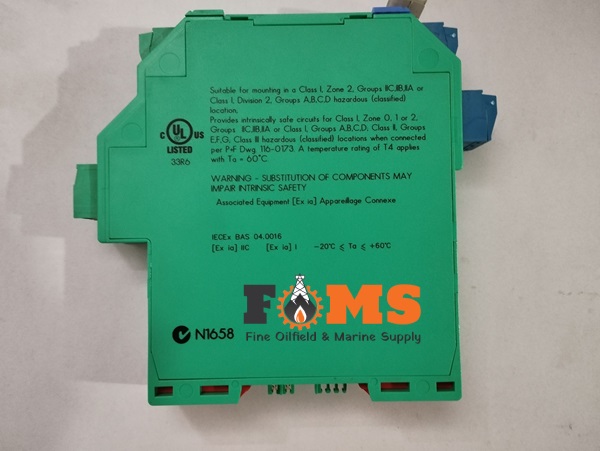

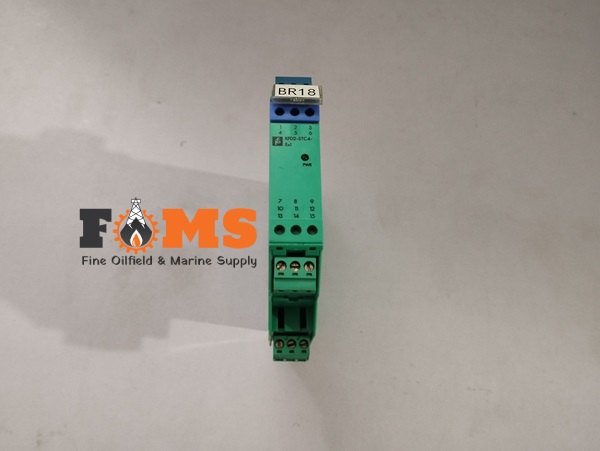

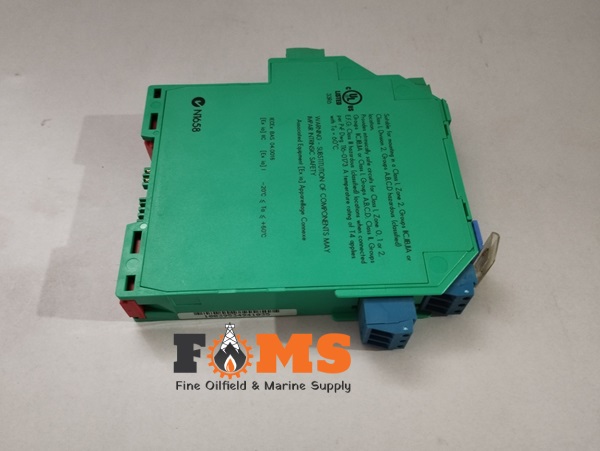

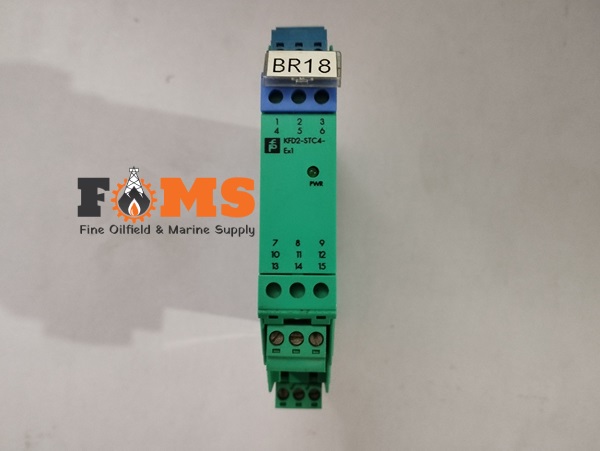

Pepperl+Fuchs Kfd2-Stc4-Ex1 Smart Transmitter Isolator

Product: Smart Transmitter Isolator

Model No: Kfd2-Stc4-Ex1

Part No: 122580

Ambient Temp: -20°C ≤ Tamb ≤ +60°C

Um: 250v Terminals/Klemmen 7,8,9,14,15

Maximum Operating: 35v

Terminals/Klemmen 1,3

Uo: 25.4v , Io: 86.8ma

Terminals/Klemmen 1,2,3

Uo: 25.4v , Io: 115ma

Terminals/Klemmen 2,3

Ui: 30v , Ii: 115ma

Terminals/Klemmen 6(+Ve) , 5(-Ve)

Uo: 8.7v

Io: 0ma

Ui; 30v , Ii: 115ma

Input: 0-20ma

OUTPUT: 0-20ma

MAKE: PEPPERL+FUCHS

MADE: SINGAPORE
